Web-Based Camera Recovery Tool

Defib is a camera recovery tool for bringing bricked IP cameras back to life. It can work with UART serial connections, TFTP, and SoC boot ROM protocols used by HiSilicon, Goke, and related camera platforms.

Use Defib when a camera no longer boots normally, when you need to load U-Boot through UART, or when you want to automate repeatable recovery and flash operations.

Web UI

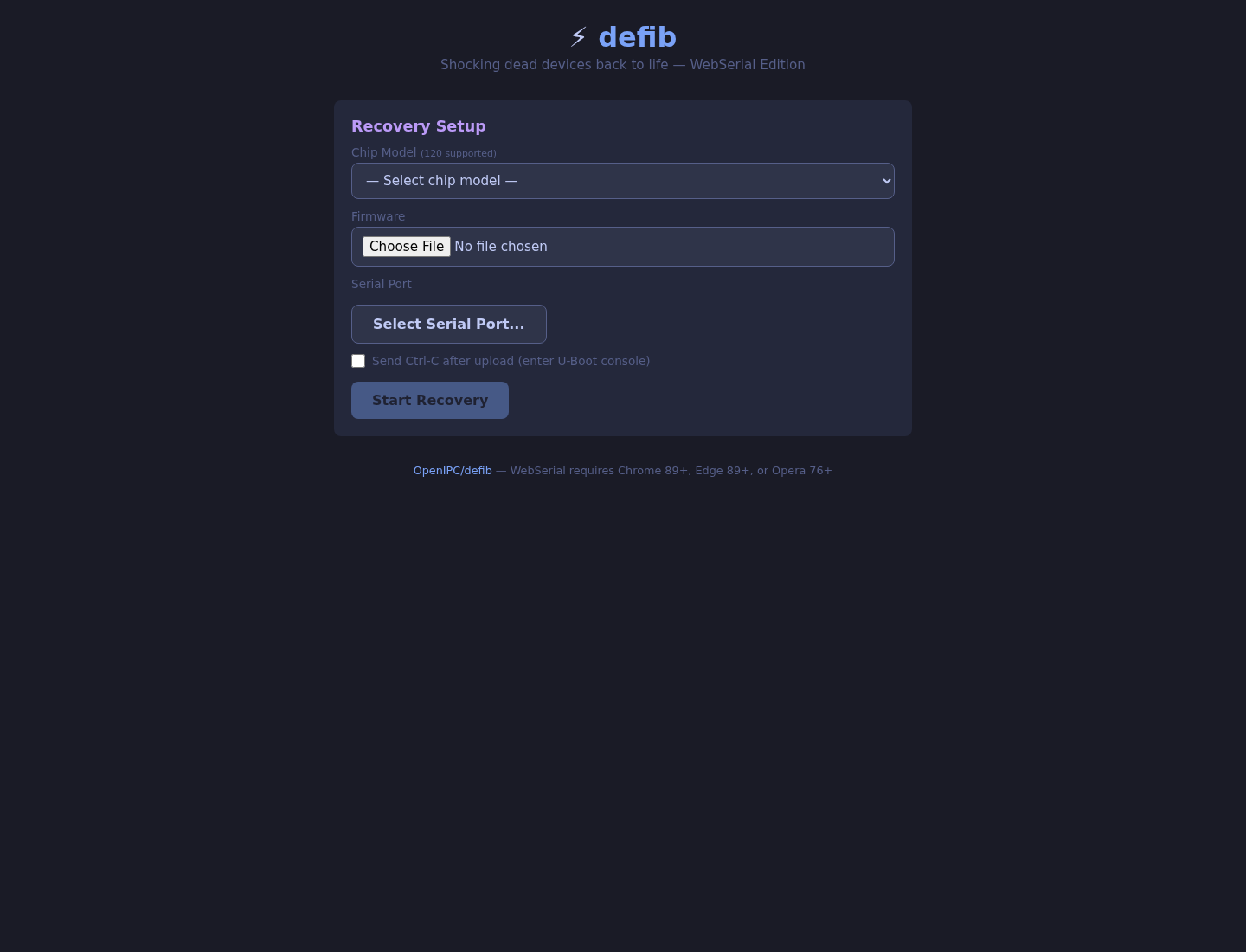

The fastest way to try Defib is the browser-based recovery tool:

Launch Defib Web Recovery Tool

It runs directly in Chromium-based browsers that support the WebSerial API, such as Chrome, Edge, and Opera. Open the page, select the chip and firmware, connect a USB-to-serial adapter, and start the recovery process.

Tip

The Web UI is useful for quick manual recovery because it does not require installing the CLI tool first.

CLI Installation

Install the command-line tool with uv or pipx:

uv tool install defib
# or
pipx install defib

Basic Commands

List supported chips and available serial ports:

defib list-chips
defib ports

Recover a device through UART with a raw serial device path:

defib burn -c hi3516ev300 -f u-boot.bin -p /dev/ttyUSB0

Use a stable UART alias when your recovery bench has multiple adapters:

defib burn -c hi3516ev300 -f u-boot.bin -p /dev/uart-orangepi5plus

Start the interactive terminal UI:

defib tui

Run network recovery through TFTP:

defib network -f firmware.bin --nic eth0

For automation, request JSON output:

defib burn -c gk7205v200 -f u-boot.bin --output json

Full Firmware Install

Defib can install a complete OpenIPC release in one command: U-Boot, kernel, and root filesystem.

defib install -c hi3516ev300 \
  --firmware openipc.hi3516ev300-nor-lite.tgz \
  -p /dev/uart-IVG85HG50PYA-S \
  --power-cycle --nor-size 8

The install flow extracts and verifies the firmware archive, downloads or reuses U-Boot, loads U-Boot through the boot ROM protocol, starts a TFTP server, flashes partitions, verifies data, saves the boot environment, and resets the device.

Note

The full install mode needs root permissions for TFTP port 69 and network interface configuration. NOR layouts with --nor-size 8 and --nor-size 16 are supported.

Flash Dump Restore

Use restore mode when you have a vendor firmware backup or a full flash dump.

Restore a directory with MTD partition files:

defib restore -c hi3516av200 -i /path/to/dump/ \
  -p /dev/uart-hi3516av200 --power-cycle

Restore a single NOR flash image:

defib restore -c hi3516ev300 -i flash_dump.bin \
  -p /dev/ttyUSB0 --flash-type nor --power-cycle

Restore an ipctool backup file:

defib restore -c hi3516av200 -i backup.bin \
  --uboot /path/to/u-boot.bin -p /dev/ttyUSB0 --power-cycle

Defib can auto-detect partition metadata from ipctool backup files with embedded YAML headers, so manual mtdparts input is usually not needed.

Automated Power Cycling

Defib can power-cycle devices during recovery. This helps catch short boot ROM windows and makes repeated recovery tests less manual.

The currently documented power backends are:

• MikroTik RouterOS PoE switches.
• OpenIPC Vectis UART bridge over RFC 2217.

Example RouterOS setup:

export DEFIB_POWER_TYPE=routeros
export DEFIB_POE_HOST=192.168.88.1
export DEFIB_POE_USER=admin
export DEFIB_POE_PASS=

defib burn -c hi3516ev300 -p /dev/uart-IVG85HG50PYA-S --power-cycle -b

Example Vectis setup:

export DEFIB_POWER_TYPE=vectis
export DEFIB_VECTIS_HOST=172.17.32.17
export DEFIB_VECTIS_PORT=35240

defib burn -c hi3516cv300 -p rfc2217://172.17.32.17:35240 --power-cycle -b

Caution

Run Defib near the UART bridge or recovery host when possible. High latency can make tight boot ROM timing windows harder to catch.

Flash Agent

Defib also includes a bare-metal flash agent for high-speed flash operations. The agent is uploaded through the boot protocol, switches to a faster baud rate, streams data to flash, verifies CRC32, and reboots the device.

Flash a firmware image through the agent:

defib agent flash -c hi3516ev300 -i firmware.bin -p /dev/ttyUSB0

Useful agent commands include:

defib agent upload -c hi3516ev300 -p /dev/ttyUSB0
defib agent read -p /dev/ttyUSB0 -o flash_dump.bin
defib agent info -p /dev/ttyUSB0
defib agent write -p /dev/ttyUSB0 -i flash_dump.bin
defib agent scan -p /dev/ttyUSB0

Testing with QEMU

Defib can be tested against the qemu-hisilicon emulator without physical hardware.

qemu-system-arm -M hi3516ev300 -m 64M -nographic \
  -chardev socket,id=ser0,path=/tmp/qemu-hisi.sock,server=on,wait=off \
  -serial chardev:ser0

Then recover through the QEMU socket:

defib burn -c hi3516ev300 -p socket:///tmp/qemu-hisi.sock
